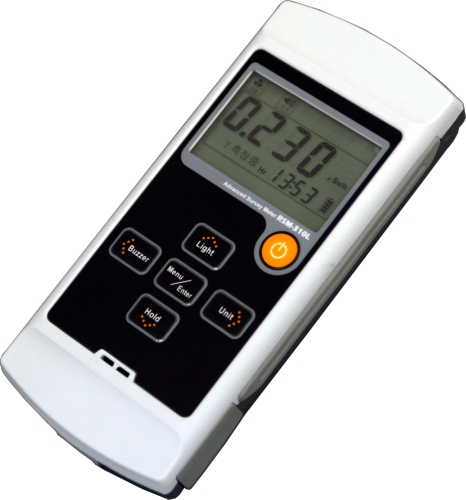

Radiation Survey Monitor - RSM 31 0L

Digital Radiation Survey Meter - RSM 310L
Description

RSM - 310L is stand alone survey meter for radiation measurement with new design and reliability. It is specialized in Gamma, X - ray from back ground to 20 mSv/h. Inner Lithium - ion battery can recharge easily, cost saver for replacing the batteries. The recharger for battery is user friendly and compatible with any standard cellular - phone charger ( 24 pin type ).



specification



Form / weight:

Size: 173 x 81 x 39 mm

Case: ABS

Control Panel: Membrane Switch Panel

Weight: 332 g including battery



output:

Display: LCD ( 63 mm x 49 mm )

Language: English

Unit: Sv/h, R/h

Indicator: 4 Digits

Back light: EL Type

Clock: Internal RTC



radiation response:

Radiation: X - Ray, Gamma

Detector: Energy Compensated GM tube x1

Measurement Range: Background ~ 20 mSv/h

Reliability: within +/-  10%

Energy Response: within +/-  20%; 60 keV ~ 1.2 MeV

Angular Response: within +/-  20% ( to front within +/- 80°  )

Response Time: Apply rapid collecting algorithm



interference response:

Radio - Radiational Wave: IEC - 61000 - 4 - 3

Magnetic Current Cycles: IEC - 61000 - 4 - 8

Discharge of Static Electricity:  IEC - 61000 - 4 - 2



ENVIRONMENT:

Temperature: -10° ~ 50°  Celsius

Humidity: 40% ~ 95% / 22 ° Celsius

Vibration: 10 ~ 33 Hz, within 2g



others:

Communication: RS - 232C Protocol

Operation Time: 2 Class Battery: More than 40 hours

Method Recharge: 24 pin charger



functions



  • 4 Digits LCD
  • Unit Selection
  • Illumination
  • Set Threshold
  • Adjust Cal. Factor
  • Self Test
  • Alarm



APPLICATIONS



  • Army
  • N.P.P
  • Industry
  • Hospital
  • Institute
  • Fire Brigade
  • Public Safety
  • Environmental Observation
