High Voltage Platform with ECR Ion Source

HV platform with ECR Ion Source and Acceleration to 300 kV

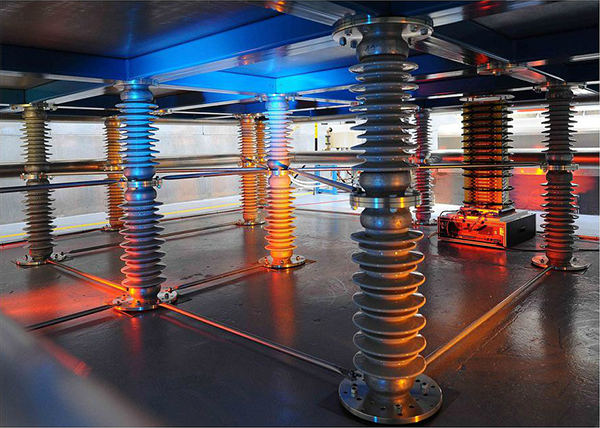

hv_platform_2

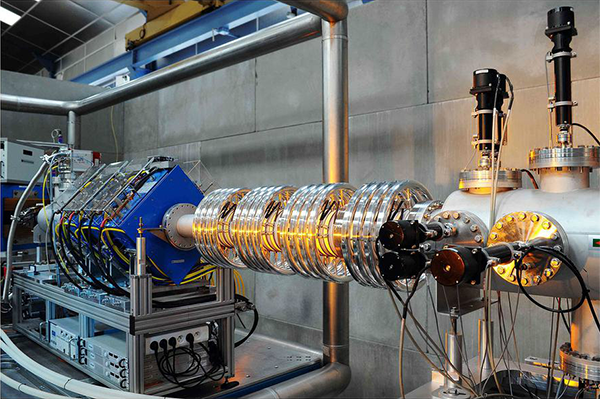

hv_platform_3

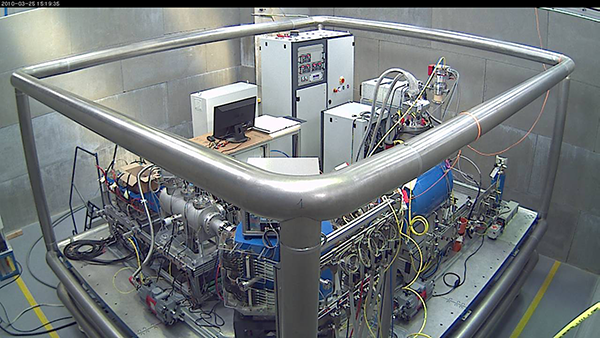

hv_platform6
Description

The proposed system includes a platform for accommodating the full bench of items plus a magnetic triplet after the magnetic dipole. The proposed magnetic triplet is intended to provide a flexible optics, allowing to vary the potential of the platform whilst keeping the good focusing after the accelerator tube. This includes the power supplies and vacuum system.

It is enough to accommodate the beam line and all equipment, including the water-cooling system. The system is delivered tested with performance certificates.
