Diagnostic Box

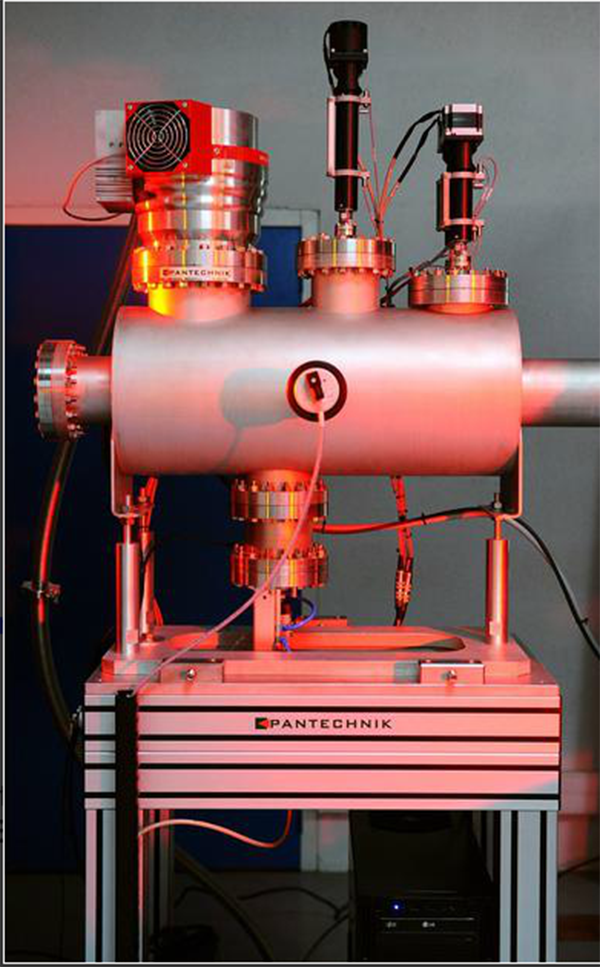

This item includes a vacuum tank specially conceived for mounting one faraday cup, a beam profiler X-Y and a turbo pump of 500 l/s. It can be connected to a beam line via DN100 CF standard. A Faraday cup is also included in this item and allows the measurement of beam intensity below 500 μA. It is mounted in an actuator, it allows removing it from the direction of the beam. This faraday cup is mounted in a standard DN100 flange in the diagnostic tank. This item also includes the beam profilers and slits system in X and Y directions. The beam profilers correspond to two independent wires, which moves along the X- and Y-axis and are remote controlled by a computer. Slits move independently and are also computer controlled
