FCT Beam Fast Current Transformer

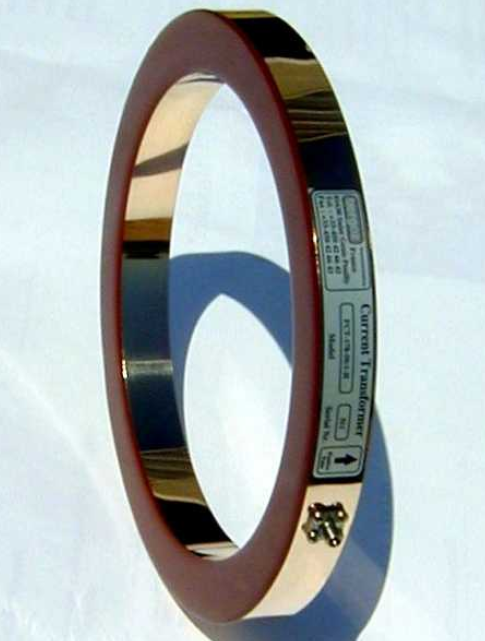

The Fast Current Transformer (FCT) is a wideband AC transformer with a rise time down to 175ps and a bandwidth up to 2GHz. Applications include measurements of:

• Pulsed beams in particle accelerators
• Partial discharge pulses from corona wires, in insulation defects
• Current rise in semiconductor gates, triggers
• Surge current waveforms in EMI/EMC analysis
• Capacitive discharge pulses

New technology:

Used world-wide on all high-energy particle accelerators to observe very short beam pulses. Exceptional bandwidth and sensitivity are achieved by using amorphous cobalt-based alloy cores specially annealed in a magnetic field to obtain very high permeability and low loss at frequencies to 2 GHz.

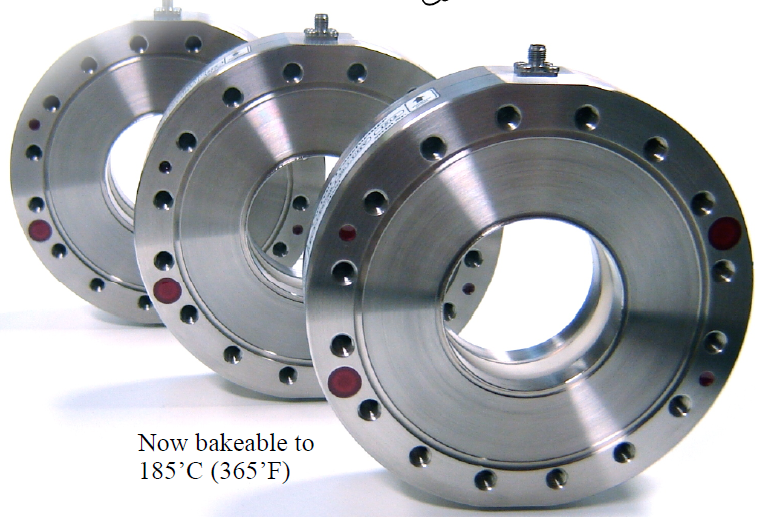

FCT can be embedded inside a conflat flange for direct mounting on the beam pipe.

Available in six different apertures ranging from 16mm up to 178mm.

Larger apertures are available on request.
