LIBERA XBS FE

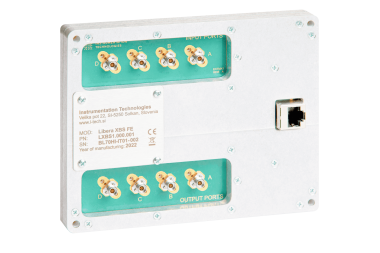

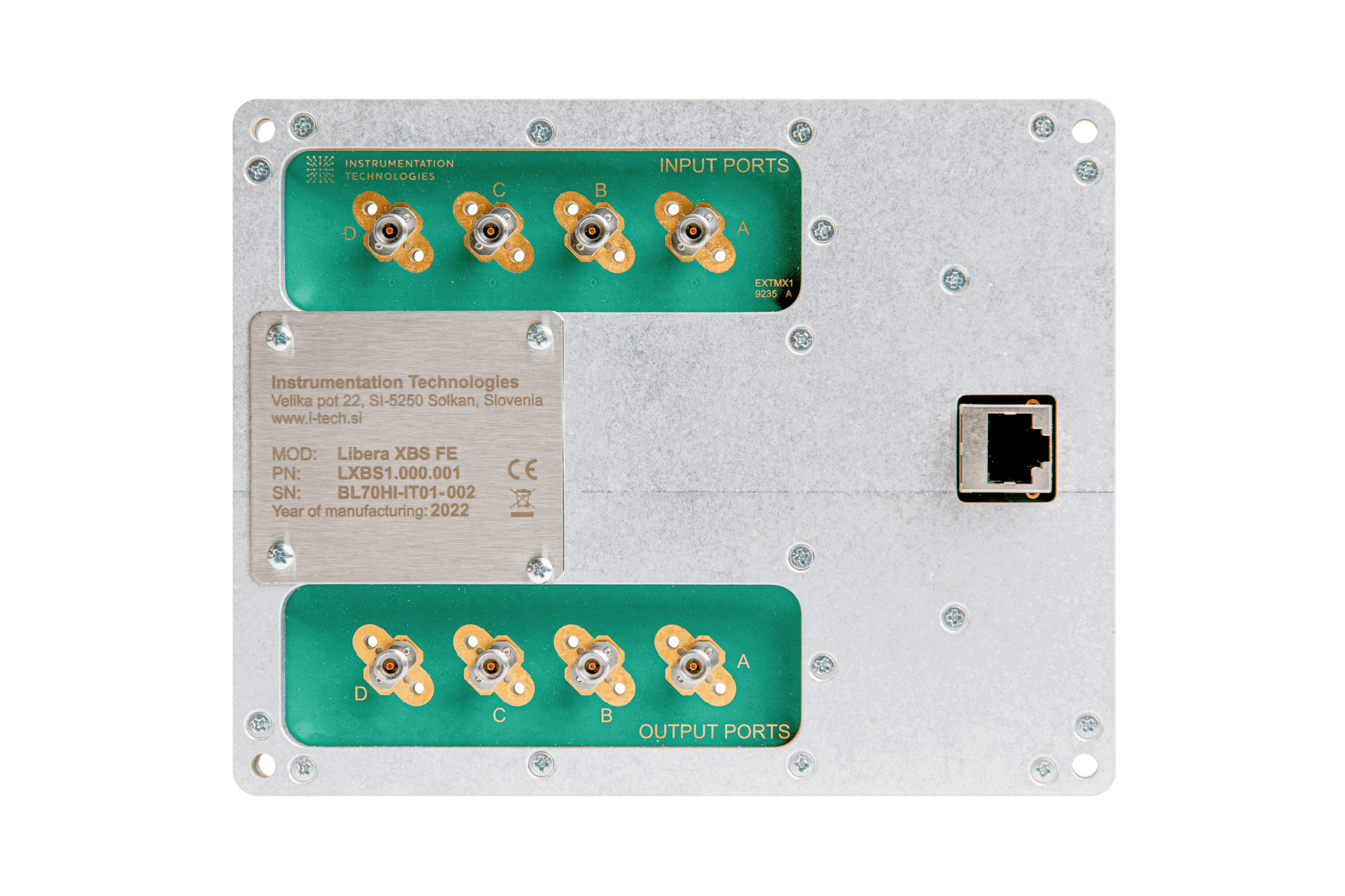

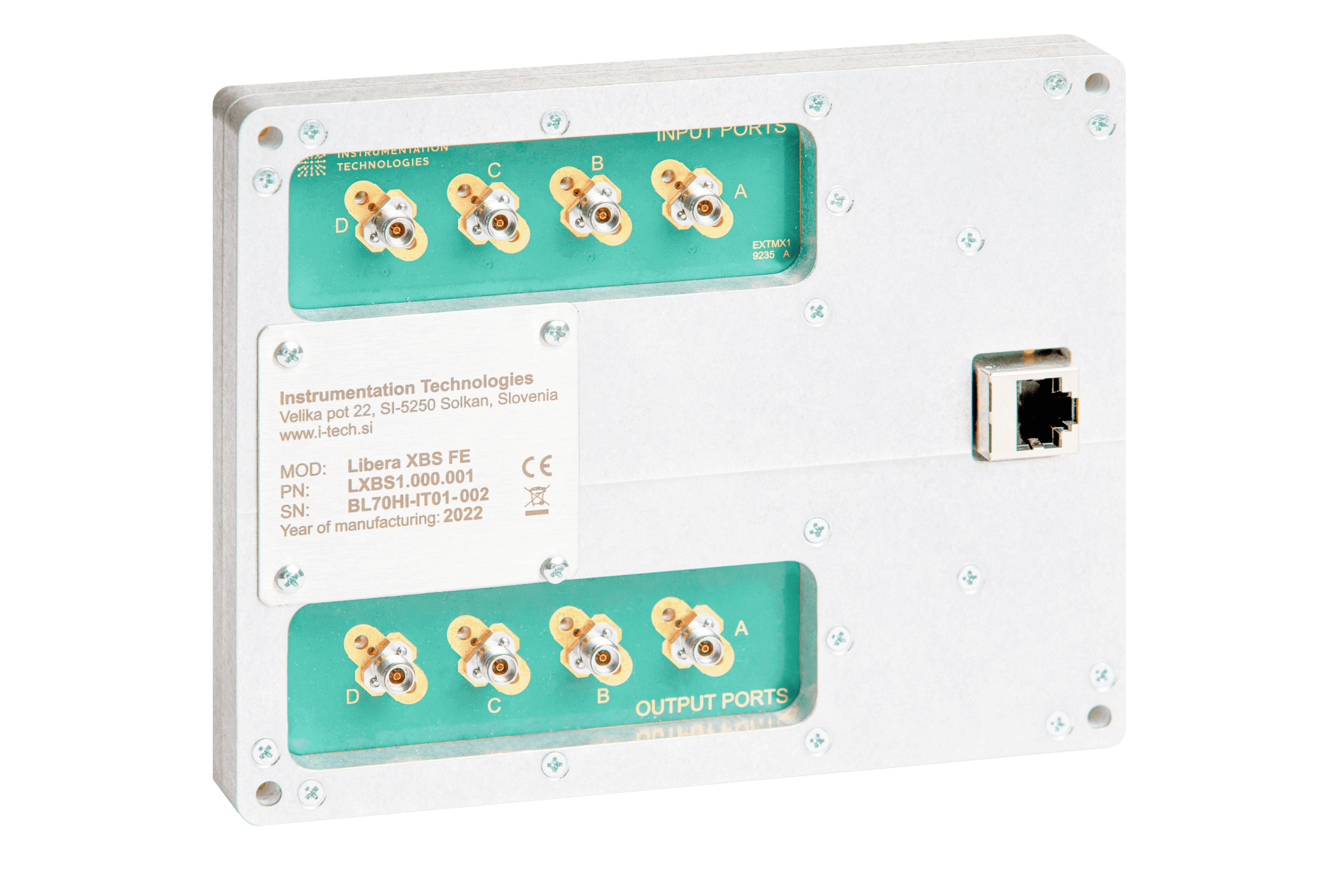

Libera XBS FE Remote Front-End Module

Overview

The Libera XBS FE is a remote analog front-end module designed to enhance the long-term stability and measurement accuracy of Beam Position Monitoring (BPM) systems. Installed close to the beam position monitor itself, the module performs signal switching at the source, minimizing the influence of cable-induced drifts before signals are transmitted to the BPM electronics.

By relocating critical signal conditioning functions closer to the pickup, the Libera XBS FE helps preserve measurement integrity over extended cable runs. This architecture enables stable and repeatable beam position measurements even when BPM electronics are located significant distances from the accelerator tunnel.

Working in conjunction with Libera Brilliance+ and compatible third-generation BPM modules, the system provides exceptional long-term stability for demanding accelerator environments where signal quality and measurement precision are critical.

Key Benefits

• Improves long-term beam position measurement stability

• Reduces the impact of signal drift in long RF cable installations

• Enables remote placement of BPM electronics

• Supports cable lengths of up to 200 meters

• Compact and rugged design for tunnel installation

• Optimized for high-precision accelerator diagnostics

Applications

• Synchrotron Light Sources

• Storage Rings

• Transfer Lines

• Accelerator Modernization Projects

• Remote BPM Installations

• High-Stability Orbit Measurement Systems

Technical Highlights

The Libera XBS FE extends the performance of BPM systems by maintaining signal integrity over long distances, providing a reliable solution for accelerator facilities requiring high-precision beam diagnostics and stable orbit measurements.
