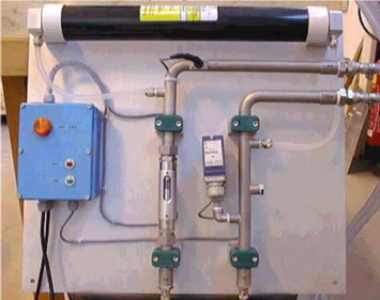

Water Chiller Unit

High Stability water chiller unit for Beamline components and Ion Sources
chiller
chiller1
Description

Geebee can supply high stability water chiller units for your scientific instruments. These are fitted with Deionized cartridges for deionized cooled water.

This is useful for general lab instruments as well as Ion sources, Water cooled Faraday Cup, Water cooled Analysing magnets and other componenets. The chiller is a water cooled closed circuit system whilch provides de-ionized water for high voltage components which have to be cooled by water. The water temperature is extremely stable (+/- 0.1° C) which is important for guarenteeing stable and reliable beam intensity. The chiller is compleed by a de-ionizer system composed of special resins.

Temperature Range - 8° C - 35° C
Temperature Stability - +/- 0.1° C
Cooling capacity - 1000 W
Pump Flux - 6.4 l/Min
Pump Power - 135 W
Dimensions (LXWXH) mm - 526 X 360 X 555
Weight - 58 kg

Power : 230 VAC – 50 Hz
Water tank volume : 18 liters
Water pressure : 2,9 bars
