Thyrowiz Thyroid Uptake System

The perfect balanced spring-loaded scissor arm enables the movement of the detector head to be smooth and effortless. Additionally, the  combination of 4 hinges and 3 rotational joints provide trustworthy placement of maneuverability.

MEASUREMENT OF HIGH RADIATION FLUX

The patented AF (attenuation filter) technology enables the system to measure virtually any situation regardless of the amount of incoming  radiation. For examples, being equipped with the appropriately designed AF, the ThyroWiz™ device can measure the thyroid uptake of ~10 mCi of 99mTc or ~200 mCi of 131I administration which corresponds with a thyroid imaging and thyroid therapy application, respectively.

 SMALL FOOTPRINT

The system integrated MCA and DAQ eliminates the need of desk-top based PC’s and  replace them with a laptop computer. By option,   customer can choose the ThyroWiz™-Wall model for extremely limited spaces.

USER FRIENDLY APPLICATION SW & GUI

Specifically designed application software and user interface for the way a user takes  thyroid uptake, calibration, quality control and imaging protocol,  has all been designed to maximize operational efficiency and convenient.

Specifications:

Detector : 2 x 2 inch NaI(Tl) with 2 inch PMT

MCA : RISC 32bit microprocessor

Communication : USB2.0 Full-speed

Input Power : standard 100~240 V 50/60 Hz

Radionuclides : 99mTc, 123I, and 131I

Dimensions & Weight :

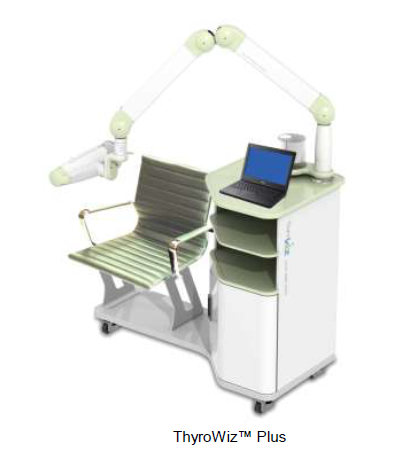

Plus : W122cmxD60cmxH178cm / 110Kg

Basic : W53cmxD60cmxH178cm / 80Kg

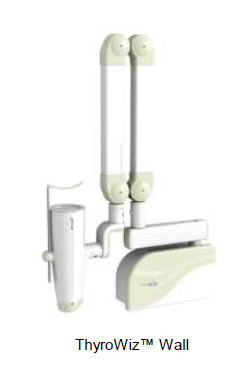

Wall : W72cmxD13cmxH105cm / 45Kg

Standard Performance

MCA Channel : 4096

Resolution: 7±1% in FWHM w/ 137Cs @ 662keV

Maximum count rate : > 200Kcps

Count Rate Stability : >99%
