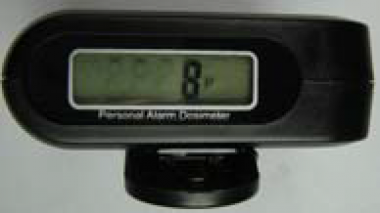

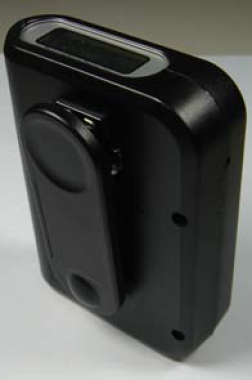

Personal Alarm Dosimeter

ADR-10 is unique product for the safety and radiation protection of radiation workers with management of real time dose and doserate. ADR-10 is the Personal Alarm Dosimeter made of si-diode detector for easy handling and rapid response for personal safety and reliable accuracy. With alarm function the user can manage personal safety itself.

Specification

• Measurement range : Dose : 0.1 μSv ~ 9.99 Sv, Doserate : 10 μSv/h ~ 1 Sv/h
• Linearity : < ±20%
• Energy Response : 80 KeV~1.5 MeV
• Response time : over 10 μSv/h, increase <5sec., decrease
• Display accuracy : ±20%
• Power and Life time: 1.5 V 'AA' type Alkaline battery, more than 300 hours continuously
• Electro magnetics : ±10% of reliable measuring minimum
• Vibration : ±15% of reliable measuring minimum
• Shock : ±10% of reliable measuring minimum
• Angular defendance : ±20% ( to front side 0~±60°, Cs-137)

Special feature

• One-button operation - One-hand operation
• Dose and doserate threshold set - Alarm function
• Reset for accumulated dose - Display current doserate
• Apply automatic unit - LCD back ground illumination

Application

• Dose management for workers - management of accumulated dose
• Daily dose management - Dose control of each work

Object

Radiational Worker, NPP, RI operator, handler, researcher, Fire brigadeetc.
